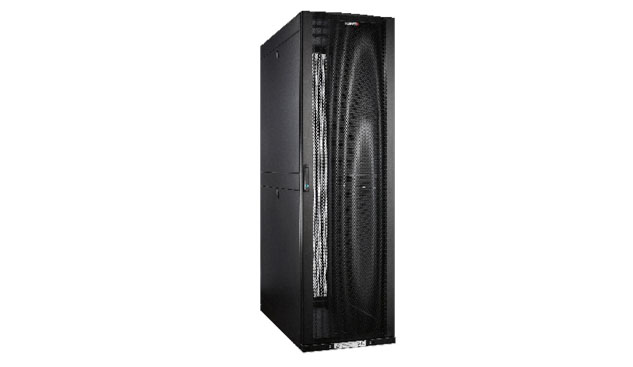

HUBNETIX CABLINE SRS Series

HUBNETIX CABLINE SRS Server Rack is the ultimate solution designed and engineered for demanding data center environments. To achieve optimum versatility within the server rack, users can set multiple depths throughout the rack by adjustable 19” mounting rails mounted on heavy duty side supports. The CABLINE Premium server racks have horizontally divided side panels provide ease of access and convenient post-installation maintenance. Over 79% perforations on front and rear door enable optimum airflow within the rack. Flat-pack option available in order to save the transport cost and warehouse space. This high quality rack enclosures are optimized for easy installation, managing cables and integrating power distribution, suitable to meet current IT market trends and high density applications.

Key Features

• Perforated doors for massive front-to-rear airflow
• Tool less mounting slots for vertical PDUs and cable managers
• Loading capacity up to 1050kgs
• 180 degree Door Opening
• Color: Black (RAL9005)
• Compliant – CE/RoSH

Standard

Complies with ANSI/EIA RS-31O-D, IEC297-2, DIN41491: PART1, DIN41494: PART7,GB/T3047.2-92, ETSI Standard

Material

SPCC High-Quality Cold Rolled Steel

Surface Finish

Degreasing, pickling, phosphoric, powder coated

Degree Of Protection

IP20

Loading Capacity

Static Loading 1,050KG

Part Number	Size(U)	Width (mm)	Depth (mm)	Height (mm)
		mm	mm	mm	Size : Dimension (WxDxH):mm x mm x mm Datasheet
